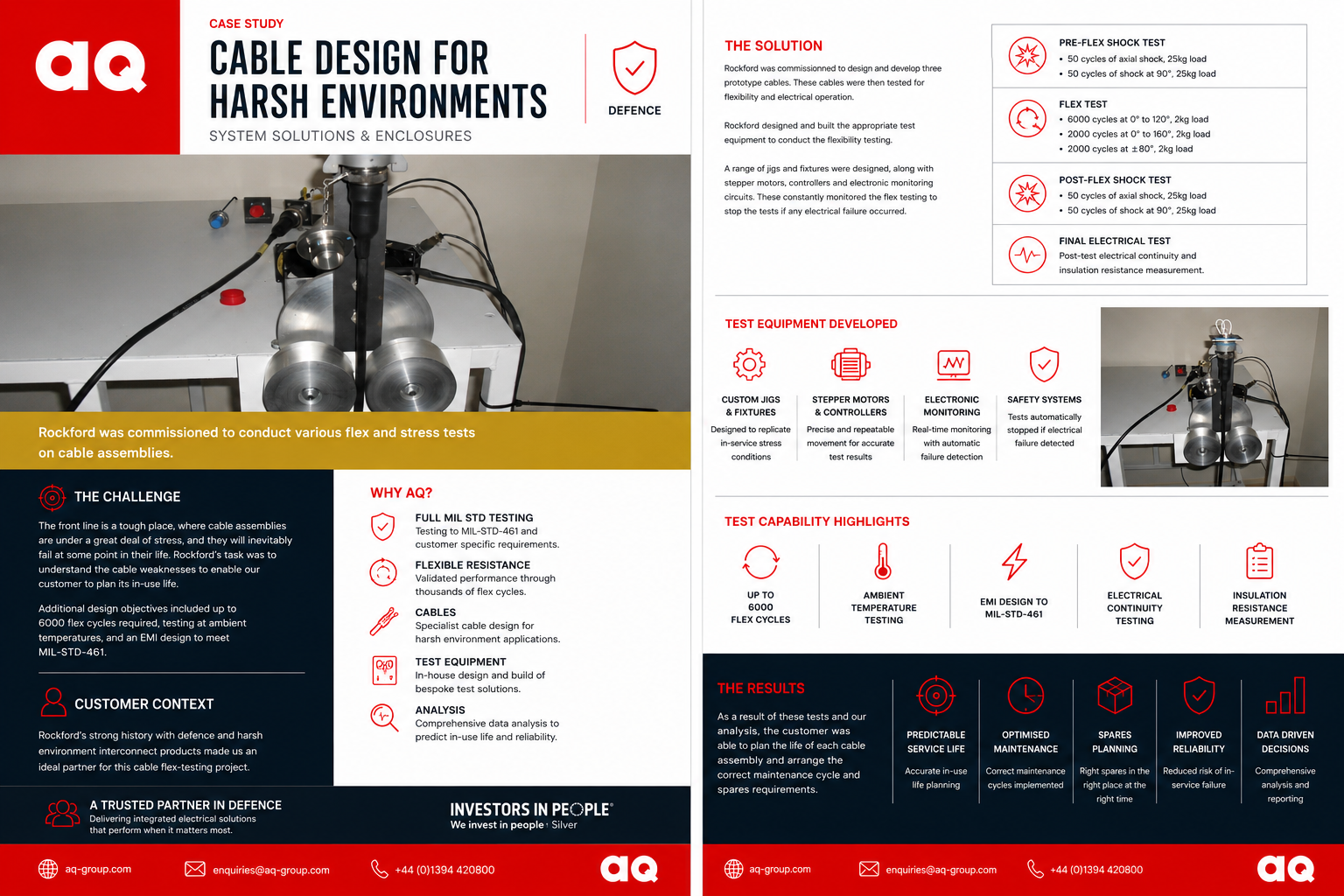

Cable Design for Harsh Environments
Rockford was commissioned to conduct various flex and stress tests on cable assemblies.
Why They Chose Rockford
Rockford’s strong history with defence and harsh environment interconnect products made us an ideal partner for this cable flex-testing project.
The Challenge
The front line is a tough place, where cable assemblies are under a great deal of stress, and they will inevitably fail at some point in their life. Rockford’s task was to understand the cable weaknesses to enable our customer to plan its inuse life. Additional design objectives included up to 6000 flex cycles required, testing at ambient temperatures, and an EMI design to meet MIL-STD-461.
The Solution
Rockford was commissioned to design and develop three prototype cables. These cables were then tested for flexibility and electrical operation. Rockford designed and built the appropriate test equipment to conduct the flexibility testing.
Pre-flex shock test:
50 cycles of axial shock, 25kg load
50 cycles of shock at 90°, 25kg load
Flex test:
6000 cycles at 0° to 120°, 2kg load
2000 cycles at 0° to 160°, 2kg load
2000 cycles at ±80°, 2kg load
Post-flex shock test:
50 cycles of axial shock, 25kg load
50 cycles of shock at 90°, 25kg load
Post-test electrical continuity and
insulation resistance measurement.
A range of jigs and fixtures were designed, along with stepper motors, controllers and electronic monitoring circuits. These constantly monitored the flex testing to stop the tests if any electrical failure occurred.
The Results
As a result of these tests and our analysis, the customer was able to plan the life of each cable assembly and arrange the correct maintenance cycle and spares requirements.
Defence projects are an area in which we’ve always worked and that we want to develop and grow further.
